SIMRAD

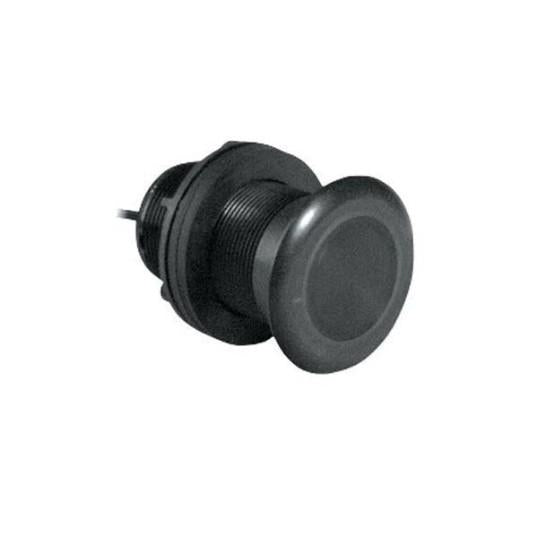

SIMRAD 000-13915-001, XSONIC P319 Plastic Low Profile 600 W Thru Hull 50/200Khz Depth/Temp: Black 9 pin connector
SIMRAD 000-13915-001, XSONIC P319 Plastic Low Profile 600 W Thru Hull 50/200Khz Depth/Temp: Black 9 pin connector
Regular price
$189.00 USD
Regular price
Sale price
$189.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The P319 features a 50/200 kHz, dual frequency, single ceramic element in a low profile plastic housing. The nearly flush design minimizes drag with only 5 mm (2/10 in) extending outside of the hull.
Additional information
| Weight | 2.65 lbs |
|---|---|
| Manufacturer | |
| Item Name |
Transducer |
| UPC |
9420024162705 |
| Model |
000-13915-001 |
| Type |
Low Profile |
| Material |
Plastic |
| Frequency |
50 and 200 kHz |
| Beam |
45 deg at 50 kHz, 12 deg at 200 kHz |
| Maximum Depth |
235 to 353 m at 50 kHz, 118 to 206 m at 200 kHz |
| Deadrise Angle |
7 deg |
| Depth/Speed/Temperature |
Depth and Temperature |
| Acoustic Window |
Urethane |
| Number of Pins |
9 (Black) |
| Nominal Impedance |
200 Ohm at 50 kHz, 375 Ohm at 200 kHz |
| Mounting Type |
Through-Hull |
| Hole Size |
2 in |
| Dimensions |
2.94 in Dia x 3.75 in L |
