GARMIN B60 BRONZE THRU-HULL LOW PROFILE AT 20 DEGREE TILT FOR 16 TO 24 DEGREE DEADRISE, W/TEMP, 8-PIN | 010-10982-20
GARMIN B60 BRONZE THRU-HULL LOW PROFILE AT 20 DEGREE TILT FOR 16 TO 24 DEGREE DEADRISE, W/TEMP, 8-PIN | 010-10982-20
Couldn't load pickup availability

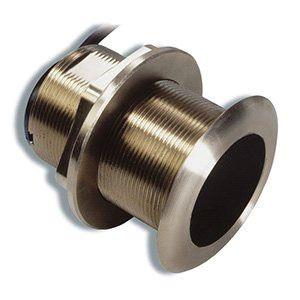

Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin) – Airmar B60
This entry-level tilted bronze transducer accommodates deadrise angles of 16 to 24 degrees without a fairing.
An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.
Additional information
| Weight | 7 lbs |
|---|---|
| Item Name |
Transducer |
| Manufacturer | |
| Model |
010-10982-20 |
| UPC |
753759971823 |
| Type |
20 deg Tilt |
| Material |
Bronze |
| Frequency |
50 and 200 kHz |
| Beam |
45/12 deg |
| Maximum Depth |
800 to 1200 ft |
| Deadrise Angle |
16 to 24 deg |
| Cable Length |
33 ft |
| Depth/Speed/Temperature |
Depth and Temperature |
| Number of Pins |
8 |
| Mounting Type |
Through-Hull |
